Components

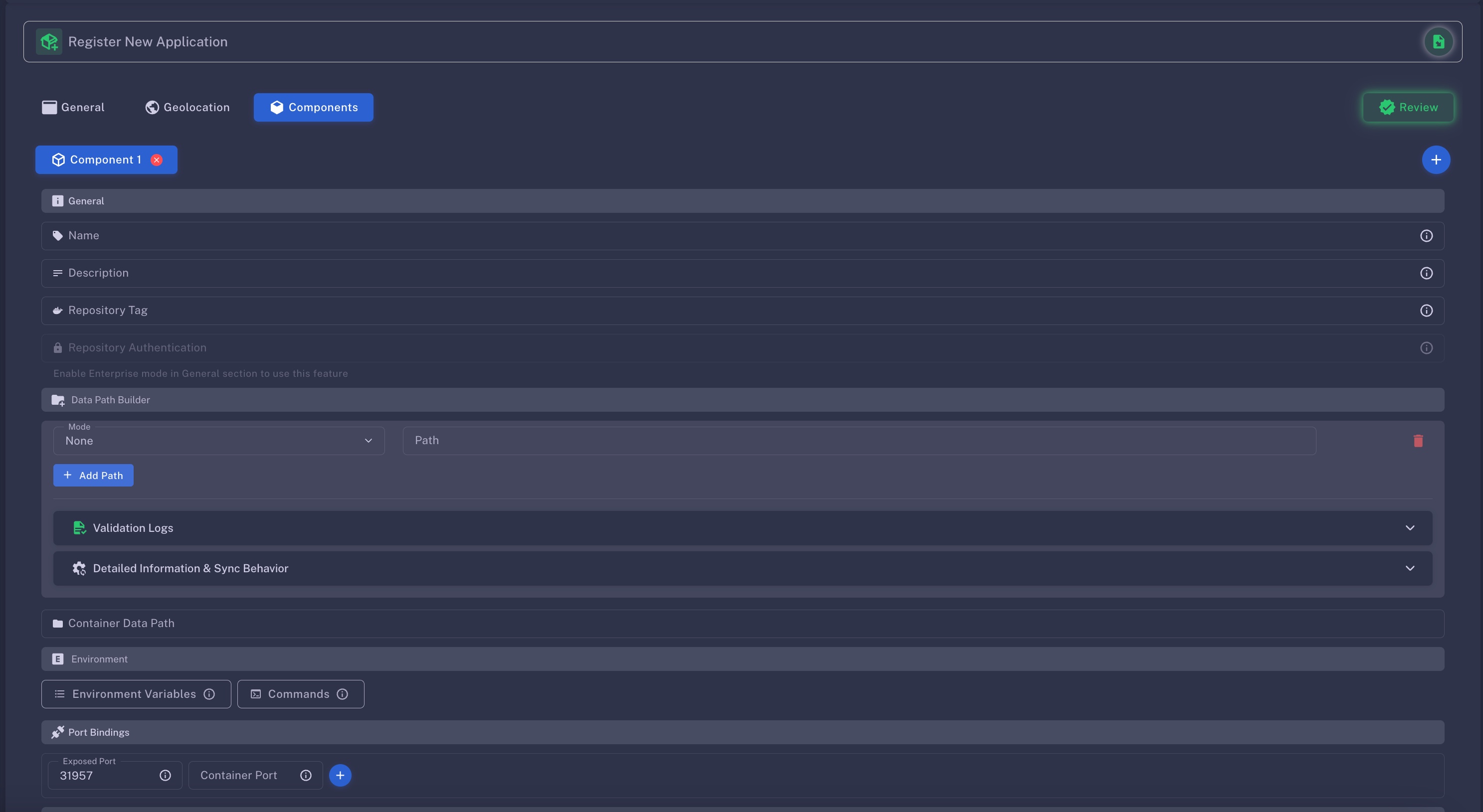

The Components tab is where you define the technical details for each container that makes up your application.

Overview​

In this tab, you define and manage each container (component) that makes up your application.

  • Click the "+" icon to add a new component
  • Use the "red x" icon to delete or reset an existing component
  • Each component is configured independently with its own image, ports, resources, and settings

Name​

  • Must be at least 3 characters long
  • Allowed characters: A–Z, a–z, 0–9
  • No spaces or special characters allowed

Description​

  • Must be at least 10 characters long

Repository Tag​

Enter the Docker container repository

  • Supported formats include: namespace/repository:tag
  • Compatible with Docker Hub, GCR, GitHub Packages, and similar registries

Repository Authentication​

You need to enable "Enterprise" at the General Tab to use this feature

  • Add your Docker authentication username:apikey

Docker Path Builder​

Define one or multiple shared data volumes for your container using the format:

/path

Data Path Mode

  • r: (Replicated After Readiness)
    Use r: to delay data synchronization until all container instances are fully running. This ensures volumes are only mounted and synced when all backends are confirmed live—ideal for consistency in replicated setups.
  • g: (Primary/Standby)
    Use g: to enable a primary/standby configuration. One instance acts as the primary (read–write), while the others stay in standby mode and only replicate changes from the primary.
  • No Prefix
    If no prefix (r: or g:) is used, the path is treated as a standard local volume. These are non-persistent and not synchronized between instances.

ℹ️ Extent "Detailed Information & Sync Behavior" for more detailed information.

Environment Variables (Optional)​

Define environment variables for your container using the syntax:
VARIABLE=value

  • Click the "Environment Variables" button
  • Enter a Key, and Value, then click the "+ icon" to save the entry.
  • You can add multiple ENV entries
  • You can import ENVs from JSON
    • Format: JSON array of strings
    • Example: ["KEY=value", "FOO=bar", "PORT=3000"]
  • ⚠️ Environment variables are publicly accessible via the FluxCloud API if you have not enabled "Enterprise" in the General Tab.

Commands (Optional)​

Define CLI commands for your container in JSON array format
Example: ["--logs", "--history", "version"]

  • Click the "Commands" button
  • Enter the command, then click the "+ icon" to save the entry.
  • You can add multiple run commands
  • You can import Commands from JSON
    • Format: JSON array of strings
    • Example: ["npm install", "npm run build", "node server.js"]
  • ⚠️ Commands are publicly accessible via the FluxCloud API if you have not enabled "Enterprise" in the General Tab.

Port Bindings​

Set both the Exposed Port and the Docker Container Port

  • Click the "+ icon" to save the entry
  • You can add multiple port forwarding rules

Port Guidelines:​

  • Exposed Port must be between 1024–65535
    • Restricted ports (do not use):
      ['16100–16299', '26100–26299', '30000–30099', 22, 23, 25, 123, 161, 512, 513, 3388, 3889, 4444, 5800, 5900, 5901, 8384, 27017]
  • Docker Container Port should correspond to your app’s internal port (e.g., 80 for web servers)

Custom Domains (Optional)​

Once a Port Forwarding rule is added, you can assign a custom domain

Hardware Resources​

  • Specify the CPU, RAM, and storage needed for this component.
